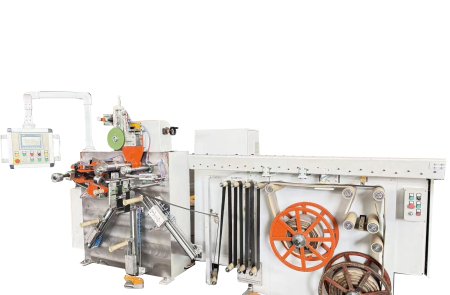

This equipment is an Apexing & Flipping system that uses flipper strip to bond the apex and bead ring into one piece by "U"-shaped flpping method, preventing the bead ring from shifting and improving the stability of the process.
It’s a fully integrated system for apex application and flipping on rubberized bead ring. The entire process from apex extrusion, conveying, cooling, storage, application (synchronous action of flipper let-off, application and cutting) to apexed bead collection, storage and trolley transportation is fully automatic. The system is with wide production range, uniform apex application (& flipping) performance for different bead wire size and structure.
The TBR bead U-type flipping machine is a device that fully wraps the bead ring with wide fabric strips through a new U-type flipping method. Its main function is to fix the bead ring via fabric strip flipping, so as to prevent the bead ring wires from scattering or deforming during the vehicle's driving, and enhance the service life and safety of the tire.
This equipment is mainly used for the bead winding and forming with regular hexagonal, 15° oblique hexagonal, square or other cross-sectional shapes. Via the precise control of winder, wire pay-on device, height adjust and former expansion and collapse mechanism by the four axis servo control system to complete the production of various sections and turns of bead wire.
It is specially used for rubber coating, extrusion and winding of bead with hexagonal, square and other various sections. It can produce one or multiple products at a single time, and realizes full automatic control through PLC and HMI.

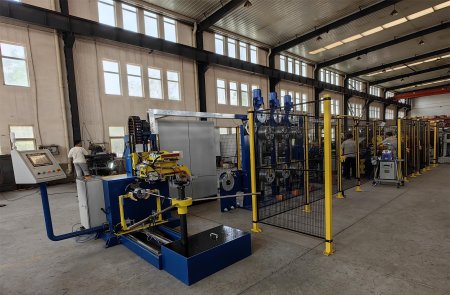

This production line is dedicated to manufacturing bead rings for PCR tires, adopting a continuous single‑wire winding process. Taking coiled bead wire as raw material, the line integrates constant tension let‑off, surface cleaning & decontamination, constant‑temperature continuous preheating, precision extrusion coating, tension storage traction, servo automatic wire arranging, and forming. All processes work in linkage for automatically beads forming.
Bead winding line for TBR tire/TBR Bead winding line/Bead bundle machine/Tire bead bundle machine. TBR Bead winding system is mainly used for the bead production with various cross-sectional shapes such as regular hexagons, left oblique hexagon, right oblique hexagon, and heptagon.
This equipment is a Apexing&Flipping system that uses flipper strip to bond the Apex and Bead ring into one piece by "U"-shaped wrapping method, preventing the Bead ring from shifting and improving the stability of the process.

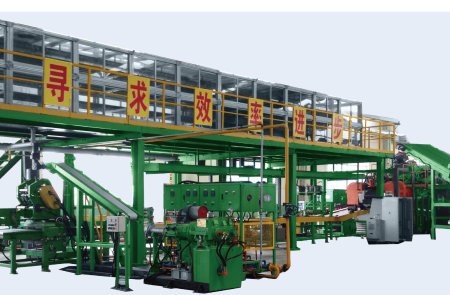

One machine fits bias/radial tire treads and sidewalls, with in-line/off-line composite compatibility. Workflow: shrinkage forming → cooling → fixed-length cutting → weighing → sorting → winding.
