Offline Full-Automatic Laser Cleaning Machine for Tire Molds

Application

Suitable for offline batch cleaning of molds, equipped with high-precision laser and multi-axis linkage control, realizing non-destructive mold cleaning, adapting to the needs of factory centralized mold cleaning, reducing costs and increasing efficiency.



ADVANTAGES

Non-destructive precision cleaning.

1.Non‑destructive Precision Cleaning: Adopts high‑end laser cleaning technology, fully preserves the original precision of molds, and effectively extends mold service life.

2.Fully Automatic Operation: Intelligently identifies mold posture, automatically plans the optimal cleaning path, and operates fully automatically without manual supervision or intervention.

3.Batch Cleaning: Supports continuous batch operation for multiple molds, meets the centralized cleaning needs of large‑scale production lines, efficiently reduces workload and boosts overall line productivity.


Inquire now

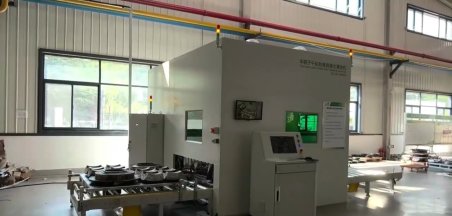

ecb5abc00c24ed76aeb2[00_00_02][20260423-170600]

Product Details

Technical parameters


Model                DLF-LZJ-1000MDLF-LZJ-1500MDLF-LZJ-2000M
Laser Generator1000W1500W2000W
Laser Operation ModePulsedPulsedPulsed
Average Output Power≥1000W≥1500W≥2000W
Output Power Instability＜5%＜5%＜5%
Scanning Width50～300mm50～400mm50～450mm
Positioning Device3D High-Definition Camera3D High-Definition Camera3D High-Definition Camera
Robotic Arm6-Axis Robotic Arm6-Axis Robotic Arm6-Axis Robotic Arm
Telescopic Mechanism Repeat Positioning Accuracy0.2mm0.2mm0.2mm
Lifting Mechanism Repeat Positioning Accuracy0.2mm0.2mm0.2mm
Rotary Mechanism Repeat Positioning Accuracy0.1°0.1°0.1°
Cooling MethodWater-cooledWater-cooledWater-cooled
Operation ModeManual recipe selection cleaningManual recipe selection or recipe-free cleaningRecipe-free cleaning
Transmission Mode3-station/5-station (mechanical transmission), AGV3-station/5-station (mechanical transmission), AGV3-station/5-station (mechanical transmission), AGV
Cleaning Efficiency20min/PCR mold (245/55R19)18min/PCR mold (245/55R19)
25min/TBR mold (12R22.5)		20min/TBR mold (12R22.5)
Mold CombinationPCR mold: 8 pattern blocks + 2 side plates      PCR mold: 8 pattern blocks + 2 side plates
TBR mold: 9/10/11/12 pattern blocks + 2 side plates		TBR mold: 9/10/11/12 pattern blocks + 2 side plates
Cleaning ResultClean, uniform, no dead cornersClean, uniform, no dead cornersClean, uniform, no dead corners
Cleaning Noise＜80dB（A）＜80dB（A）＜80dB（A）
Operators1 person/shift1 person/shift1 person/shift
Operating Ambient Temperature0～40℃0～40℃0～40℃
Operating Ambient Humidity≤80%≤80%≤80%
Total Power Consumption23kW23kW23kW
Overall Dimensions (L×W×H)9500×5500×3800mm
(Customizable according to on-site conditions)		9500×5500×3800mm
(Customizable according to on-site conditions)		9500×5500×3800mm
(Customizable according to on-site conditions)
Total Weight2t2t2t
