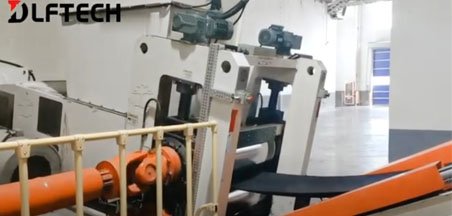

Twin-screw extruder

Twin-screw extruder is usd to continuously extrude the rubber compound from internal mixer into rubber sheet.


Application

Twin-screw extruder is mainly used with internal mixer to realize continuous extrusion of rubber sheet for more stable quality and uniform thickness of the sheet.


Features

High automation, better compounding performance.


Highlights

1. Low energy consumption, easy maintenance, and long service life.

2.  Uniform distribution and stable quality for rubber material.

3. Customizable according to clients's needs.

Inquire now
20

Product Details

Twin-screw extruder can continuously extrude the rubber compound into sheet with uniform distribution and stable quality for rubber material.


Technical support

1. Continuous extrusion with uniform distribution for rubber material.

2. Customization support for various model.


Technical Parameters：

                                          Model
Parameter		XJY-ZS
482/200		XJY-ZS
602/250		XJY-ZS
743/330		XJY-ZS
936/416
Shape of screwVariable pitch and depht,conicalVariable pitch and depht,conicalVariable pitch and depht,conicalVariable pitch and depht,conical
Screw diameter（mm)φ480×φ200φ602×φ250φ743×φ330φ936×φ416
Screw speed（r/min)2.2~222.2~222.2~222.2~22
Motor power of screw drive（KW）
(DC. or AC. variable frquency regulation)		75~9090132/160250
Size of roller（mm）φ360×700φ400×800φ450×1000φ508×1070
Linear speed of calender roller（m/min）2.5~252.5~253.2~323.0~30

Roll nip (mm)

3~103~103~103~10
Sheet width（mm）400(450)550(600)700(750)700(750/800/850)
Motor power of sheeting machine7590132/160250
Capacity（kg/h)30006000900011000
Mixer model to be matchedGK110N
GK110E
GK90N
GK90E
GK85N
F120. F80		GK190E
GK190N
GK160N
F160. F180
GK135E
XM-160A
XM-140		GK270N
GK250N
GK250E
F270
XM-270		GK420
GK400N
F370
XM-370
