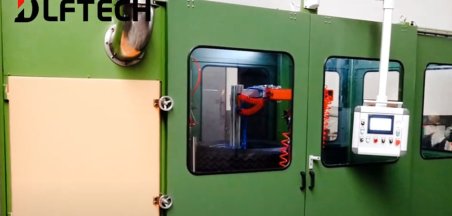

Tire section cutting machine

Tire section cutting machine/Steel wire tire cutting machine/Tire cutting machine/wire saw cutting machine


Application
Tire section cutting machine is a necessary testing equipment for tire enterprises, automobile manufacturers and testing organizations. Tire section cutting machine adopts special cutting wires to get a section piece at one time, suitable for finished Bias/PCR/TBR tires, and the cutting process of Tire section cutting machine is fully automatic and rapid, the section piece surface is clear and smooth.


Features

Tire section cutting machine uses special cutting steel wire to ensure the clearness and smoothness of section piece.


Highlights

1. Comply with CE standard.

2. Formula management, simple operation.

3. Automatic cutting without manual intervention.

Inquire now
2

Product Details

Tire section cutting machine adopts special cutting wires to get a section piece at one time. Tire section cutting machine is applicable for finished Bias/PCR/TBR tires.


Technical support

1. The steel cutting wire is processed by a special process to achieve a double-sided toothless cut with smooth and clear cutting surface.

2. Equipped with integrated dust removal system and spray system to ensure safety and reliability.

3. Adopt Mitsubishi PLC control for high degree of automation.


Technical parameters

No.ItemDLF-TC1500DLF-LQ-4200/1700


SpecificationSpecification
1Tire cutting range


Tire outer diameter(mm)600～15001500～4200

Tire section width(mm)135～450650～1800

Bead range of applicable tires15"～24.5"24"～60"

Bead thickness(Max.)40mm225

Tire section height(Max.)440mm1200

Tire weight≤200kg≤700kg
2Cutting data


Cutting feeding speed（mm/min）0～150mm/min3～40

Fast forward and backward speed(Max.)300600

Width of the cutting sample
Double toothless wire saw cutting		35-50mm15-100mm
3Others


Working air pressure(MPa)0.6~0.80.6~0.8

Power(KW)1525
