| Part name | Model | DGB-Q1400x12600x1 | DGB-Q1600×12600（16600）×1 | DGB-Q1800×12600（16600）×1 | DGB-Q2000×12600×1 | DGB-Q2200×15600×1 | DGB-Q2400×12600（16500）×1 |
| Parameters |

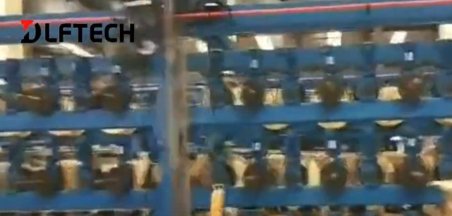

| Creel | Creel（pc,adjustable） | 120 | 138 | 156 | 172 | 204 | 204 |
| Initail tension（N／single wire） | 80～400 | 80～400 | 80～400 | 80～400 | 80～400 | 80～400 |
| Tension station with clamping holder |
|
|
|
|
|
|
|
| Arc clamping platen width（mm) | 500 | 500 | 500 | 500 | 500 | 500 |
| Clamping force of clamping device(KN) | 800 | 900 | 1000（1200） | 1500 | 1600 | 1450 |
| Constant tension cylinder stroke(mm) | 350 | 350 | 350 | 350 | 350 | 350 |
| Building machine with rubber edge cutting |
|
|
|
|
|
|
|
| Diameter&Q'ty of cutting knives | φ300mm，2 knives | φ300mm，2 knives | φ300mm，4 knives | φ300mm，4 knives | φ300mm，4 knives | φ300mm，4 knives |
| Cooling pressure platen size（mm，adjustable) | 1100x1400 | 1100×1600 | 1100×1800 | 1100x2000 | 1100x2200 | 1100×2400 |
| Unit pressure of cooling forming（Mpa） |
| 4.0 | 4.0 | 4.5 | 4.5 | 4.5（4.0） |
| Speed of building mahine（m/min） | 6 | 6 | 6 | 6 | 6 | 6 |
| Max.diameter of upper rubber sheet roll（mm） | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Max.diameter of lower rubber sheet roll（mm) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Max. width of rubber sheet roll (mm) | 1300 | 1500 | 1700 | 1900 | 2100 | 2300 |
| Speed of rolling trolley moving horizontally(m/min) | 6 | 6 | 6 | 6 | 6 | 6 |
| Liner winding-up |
|
|
|
|
|
|
|
| Max.diameter of liner winding-up(mm) | 600 | 600 | 600 | 600 | 600 | 600 |
| Max.width of liner winding-up(mm) | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
| Let-off device |
|
|
|
|
|
|
|
| Max. diameter of green belt roll (mm) | 3000 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Max.width of green belt rollmm) | 1200 | 1500 | 1700 | 1900 | 2100 | 2300 |
| Pull back speed (m/min) | 2 | 2 | 2 | 2 | 2 | 2 |
| Front clamping&stretching device |
|
|
|
|
|
|
|
| Clamping platen size（mm) | 500X1400 | 400×1600 | 400×1800 | 400x2000 | 400x2200 | 400×2400 |
| Stretching cylinder stroke（Max. mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Curing press |
|
|
|
|
|
|
|
| Structure tpye | Frame type hydraulic lifting | Frame type hydraulic lifting | Frame type hydraulic lifting | Frame type hydraulic lifting | Frame type hydraulic lifting | Frame type hydraulic lifting |
| Heating platen size (mm) | 1380×12600×100 | 1600×12600×90
1590×16600×90 | 1800×12600×90
1800X16600X90 | 2000×12600x90 | 2200×15600 | 2390×12600×100
2400×16500×90 |
| Max.curing belt width (mm) | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 |
| Curing thickness（mm) | 6～40 | 6～40 | 6～40 | 6～40 | 6～50 | 6～40 |
| Unit pressure of heating platen（MPa） | 4.0 | 4.2 | 4.0 | 4.5 | 4.0 | 4.5 |
| Max.ram stroke（mm） | 300 | 300 | 300 | 300 | 350 | 300 |
| Ram diameter（mm） | 450 | 500（560） | 560（600） | 600 |
| 630（650） |
| Ram quantity (pc） | 22 | 20（22） | 20（24） | 20 |
| 20（24） |
| Rise speed of heating platen | 8mm/s | 6mm/s | 6mm/s | 6mm/s | 6mm/s | 6mm/s |
| Heating platen falling | Depends on its own weight | Depends on its own weight | Depends on its own weight | Depends on its own weight | Depends on its own weight | Depends on its own weight |
| Max.work temperature of heating platen | 170℃ | 170℃ | 170℃ | 170℃ | 170℃ | 170℃ |
| Middle clamping |
|
|
|
|
|
|
|
| Clamping platen size(mm) | 400X1400 | 400×1600 | 400×1800 | 400x2000 | 800x2200 | 400×2400 |
| Multi functional belt pulling device |
|
|
|
|
|
|
|
| Linear speed of pulling belt (Max.) | Steel cord belt 8m/min
Fabric cord blet 12m/min | Steel cord belt 8m/min
Fabric cord blet 12m/min | Steel cord belt 8m/min
Fabric cord blet 12m/min | Steel cord belt 8m/min
Fabric cord blet 12m/min | Steel cord belt 8m/min
Fabric cord blet 12m/min | Steel cord belt 8m/min
Fabric cord blet 12m/min |
| Belt repair curing press |
|
|
|
|
|
|
|
| Heating platen size (mm) | 1200×800×70 | 1600×600×60 | 1800×600×60 | 400x400x60 | 400x400x60 | 2400×800×70 |
| Hydraulic belt cutting device |
|
|
|
|
|
|
|
| Moving speed of cutting device (m/min) | 2.75 | 2.75 | 2.75 | 2.75 | 2.75 | 2.75 |
| Wind-up and packing device |
|
|
|
|
|
|
|
| Max.diameterof belt wind-up(mm) | φ3500 | φ3500 | φ3500 | φ3500 | φ3500 | φ3500 |
| Linear speed of belt wind-up(Max. m/min） | 12 | 12 | 12 | 12 | 12 | 12 |
