Intelligent laser cleaning system for tire mold

Intelligent laser cleaning system for tire mols/Laser cleaning system for tire mold/Laser cleanning


Application：

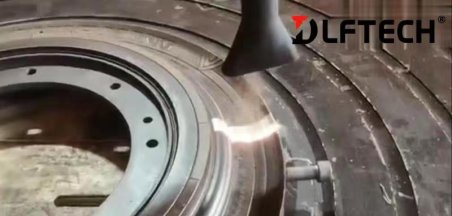

Intelligent laser cleaning system for tire mold is used to effectively clean rubber, oil and other stains on the surface of the mold.


Features：

The cleaning process is noise-free, pollution-free, with low energy consumption and no damage to the molds.


Highlights:

1. Intelligent identification, automatic and thorough cleaning from all directions and angles can be achieved without dead corners and damage to the molds.

2. One click start and easy to operate. Small footprint, one person can operate independently

3. High cleaning efficiency and low energy consumption.


Inquire now

Product Details

Intelligent laser cleaning system for tire mold is used to effectively clean rubber, oil and other stains on the surface of the mold. The cleaning process of Intelligent laser cleaning system for tire mold is noise-free, pollution-free, with low energy consumption and no damage to the molds.


Technical parameters：

TypeSingle station offline intelligent cleaning system for tire moldFour station offline intelligent cleaning system for tire moldOnline intelligent cleaning system for tire mold
ModelDLF-0200-38-57-I/LDLF-0200-44-52-I/L-II
DLF-0200-45-52-I/L-II		DLF-0200-48-60-I/L
Applicable curing press————Vetical action hydraulic curing press
Cleaning object12-30'' tire mold12-30'' tire mold14-21'' tire mold
Machine dimensions7m*5m  (L*W)7m*4.8m/6.8m*4.8m  (L*W)1.2m*3m  (L*W)
Power supply380V± 10%、50/60Hz  AC380V± 10%、50/60Hz AC220V± 10%、50/60Hz AC
Machine power≤25KW≤44KW≤ 15KW
Working environment temperature&humidity0℃~40℃/≤80%0℃~40℃/≤80%0℃~90℃/≤70%
Cleaning station141
Operator111
Dust removel systemParticle absorption rate ≥ 99%, with ativated carbon filtrationParticle absorption rate ≥ 99%, with ativated carbon filtrationParticle absorption rate ≥ 99%, with ativated carbon filtration
Cleaning efficiencyClean 1 set at a time, cleaning time≤35 min, daily cleaning capacity≥40 setsClean 1 set at a time, cleaning time≤17 min, daily cleaning capacity≥82 setsClean 1 set at a time, cleaning time≤30 min, daily cleaning capacity≥36 sets
