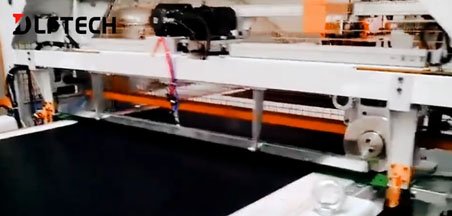

Horizontal cutter for fabric cord is used to automatically let off the calendered cord fabric, and perform cord cutting, automatic splicing, and winding up according to the process requirements.
Technical support
1.Both let-off and take-up devices adopt ultrasonic wave to detect the diameter of the coil in real time. Control the air pressure of the pneumatic brake on the coil through the electric proportional valve to ensure constant tension for let-off.
2.The cutting conveyor fixed length device is servo controlled by two-stage belt, and the bottom is installed with a vortex air pump, which can blow up from the hole conveyor belt, not only reducing the resistance, but also achieving an accurate fixed length.
3.The dust-free cutting knife device is equipped with an automatic pressing positioning device at the cutting position, and the pressing plate is made of special materials to ensure that the cord fabric will not drift during cutting, thus ensuring the accuracy of cutting size.
4.There is compressed air at the bottom of the cutting plate. After finishing the cutting of the ply, in case the head of the ply is pasted to the teflon cutting plate while feeding, solenoid valve will act to get the cutting knife plate air channel into compressed air, making the ply head always warped.
5.Depending on process requirements, users can apply two different strip formulations to the cord fabric simultaneously.
Technical parameters
| Model | HC-1500 |
| Let-off mode | Front and rear double station |
| Max.diameter of fabric roll | φ1200mm |
| Max.width of fabric roll | 1500mm |
| Width of fabric cutting | 300-900mm |
| Angle of fabric cutting | 88°-90°（adjustable） |
| Angle tolerance of fabric cutting | ±0.25° |
| Width tolerance of fabric cutting | ±1mm |
| Fabric joint misalignment | <1.0mm |
| Efficiency of cutting | 14 times/min |
| Efficiency of automatic splicing | 14 times/min |
| Width of fabric splicing | Max.900mm. |
| Overlap joint of automatic splicing | 2~4 cords |
| Accuracy of overlap joint | +0.5mm |
| Accuracy of fabric vertical cutting | ±1mm |
| Accuracy of alignment for winding up | ±3mm |
| Rubber sheet application method | Let-off by single station with 2 strips applied |
| Wind-up mode | Double station winding up |
| Model | HC-1400 |
| Applicable fabric thickness | 0.7-1.3 mm |
| Width of fabric cutting | 1400 mm |
| Max.diameter of fabric roll | MAX 1100 mm |
| Max. diameter of lining roll | 550 mm |
| Width of lining fabric | 1600 mm |
| Winding Shafts | I-wheel trolleys (Design according to the size of the workpiece provided by the demander) |
| Fabric storage capacity | ≥ 2000mm |
| Width of conveyor belt | 1570MM |
| Height of conveyor | 800 mm |
| Width of fabric cutting | 300-850 mm |
| Width tolerance of fabric cutting | ±2MM |
| Angle tolerance of fabric cutting | ±0.3° |
| Accuracy of alignment for winding up | ±3mm |
| Efficiency of automatic splicing（30°×350mm width） | 10 times/min |
| Angle of fabric cutting | 0°-55° |
| Feeding speed | MAX 35m/min |
