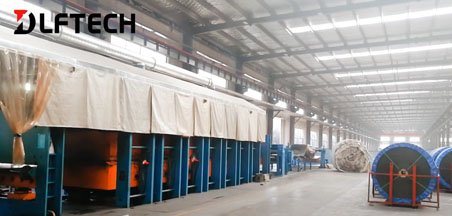

Curing press line for fabric cord rubber conveyor belt/Conveyor belt platen curing line/Conveyor belt curing press/Conveyor belt production line/Vulcanizing machine/Vulcanizing press/platen vulcanizing machine
Application
Specialized curing production line for fabric rubber conveyor belt.
Features
Serves for high-accuracy conveyor belt production.
Highlights
1.Stable and uniform pressure.
2. High accuracy.
3. Intelligence and safety.
Curing press line for fabric cord rubber conveyor belt is a specialized curing production line for fabric rubber conveyor belt.
Technical support
1. Adopt hydraulic automatic iron jacking devices, single device by single control, which ensures that the center of the belt and the belt edges are neat.
2. Equipped heat balancing device with double directions on the upper/ lower plaftorms to eliminate heat deformation and ensure the cold pressing lead error of heating platen is less than 0.15mm.
3. PLC control with touch screen.Each equipment in the production line can realize manual, automatic operation, and necessary linkage of the whole line.
Technical parameters
| Name of device | Model | XLB-Q1200x12800x2 | XLB-Q1400x10600（12800）x2 | XLB-Q1600x10000(12800)x2 | XLB-Q1800x12800x2 | XLB-Q2200x12600x2 |
| Parameter | ||||||
| Liner winding-up | ||||||
| Max. diameter of liner winding-up (mm) | 600 | 600 | 600 | 600 | 600 | |
| Max. width of liner winding-up (mm) | 1200 | 1400 | 1600 | 1800 | 2200 | |
| Let-off device | ||||||
| Max, diameter of green belt roll (mm) | 3500 | 3500 | 3500 | 3500 | 3500 | |
| Max. width of green belt roll(mm) | 1100 | 1300 | 1500 | 1600 | 2100 | |
| Pull back speed(m/min) | 2 | 2 | 2 | 2 | ||
| Front traction device | ||||||
| Max width of working face of drum（mm） | 1200 | 1400 | 1600 | 1800 | 2200 | |
| Diameter of traction roller（mm） | 320 | 290 | 320 | 320 | 370 | |
| Max.thickness of belt（mm） | 32 | 32 | 32 | 32 | 32 | |
| Traction speed（positive&negative rotation） | 15m/min | 15m/min | 15m/min | 15m/min | 15m/min | |
| Front clamping&stretching device | ||||||
| Max.clamping force（Max. KN) | 500 | 540 | 630(Max） | 960(Max） | 900(Max） | |
| Clamping platen size（mm) | 400x1200 | 400×1400 | 400x1600 | 400x1800 | 500x2200 | |
| Clamping cylinder stroke（mm） | 360 | 360 | 360 | 360 | 360 | |
| Max. stretching force（KN) | 400 | 432 | 504 | 770 | 720 | |
| Stretching cylinder stroke（Max. mm) | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Curing press | ||||||
| Structure type | Frame type hydraulic lifting | Frame type hydraulic lifting | Frame type hydraulic lifting | Frame type hydraulic lifting | Frame type hydraulic lifting | |
| Heating platen size(mm) | 1200x12800x80(top、bottom heating platen） 1200x12800x90(mid heating platen） | 1400x10600(12800)x80（top、bottom heating platen） 1400x10600(12800)x90(mid heating platen） | 1600×10000(12800)×80（top、bottom heating platen） 1600x10000(12800)x90(mid heating platen） | 1800×12800×80（top、bottom heating platen） 1800x12800x90(mid heating platen） | 2200×12600×80（top、bottom heating platen） 2200x12600x100(mid heating platen） | |
| Max. curing belt width (mm) | 1000 | 1200 | 1400 | 1600 | 2000 | |
| Curing thickness（mm) | 5～32 | 5～32 | 5～32 | 5～32 | 5～32 | |
| Unit pressure of heating platen（MPa） | u | 3.2 | 3.2 | 3.2 | 3.5 | |
| Max.ram stroke（mm） | 360 | 360 | 360 | 360 | 360 | |
| Ram diameter（mm） | 400 | 450 | 500(450) | 500 | 600 | |
| Ram quantity(pc） | 20 | 16(18) | 14(20) | 20 | 18 | |
| Rise speed of heating platen | 8mm/s | 8mm/s | 8mm/s | 8mm/s | 6mm/s | |
| Heating platen falling | self weight | self weight | self weight | self weight | self weight | |
| Max.work temperature of heating platen | 170℃ | 170℃ | 170℃ | 170℃ | 170℃ | |
| Steam pressure（Mpa） | 0.8 | 0.8 | 0.63 | 0.8 | 0.8 | |
| Middle clamping device | ||||||
| Max.clamping force（KN，adjustable) | 50 | 540 | 630 | 960 | 900 | |
| Clamping platen size (mm) | 400X1200 | 400×1400 | 400x1600 | 400x1800 | 500x2200 | |
| Clamping cylinder stroke（mm） | 360 | 360 | 360 | 360 | 360 | |
| Back clamping&stretching device | ||||||
| Max.clamping force（KN，adjustable) | 500 | 540 | 630 | 960 | 900 | |
| Claming platen size (mm) | 400X1200 | 400×1400 | 400x1600 | 400x1800 | 500x2200 | |
| Clamping cylinder stroke (mm) | 400 | 300 | 300 | 360 | 360 | |
| Max.stretching force（KN) | 400 | 432 | 504 | 1000 | 720 | |
| Stretching cylinder stroke（Max. mm) | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Back traction device | ||||||
| Max. width of working face of drum（mm） | 1200 | 1400 | 1600 | 1800 | 2200 | |
| Traction speed（positive&negative rotation） | 15m/min | 15m/min | 15m/min | 15m/min | 15m/min | |
| Belt repair curing press(Optional） | ||||||
| Heating platen size (mm) | 1200x600x60 | 1400x600x60 | 1600x500x60 | 1800x800x70 | 2200x800x70 | |
| Wind-up and packing device | ||||||
| (Double ground roll) | Max. width of rolling belt（mm） | 1000 | 1200 | 1400 | 1600 | 2000 |
| Max. diameter of rolling belt(mm) | φ3500 | φ3500 | φ3500 | φ3500 | φ3500 | |
| Linear speed of belt wind-up（Max. m/min） | 15 | 15 | 15 | 15 | 15 | |
| Max. weight of belt wind-up | 10t | 12t | 10t | 15t | 16t |
