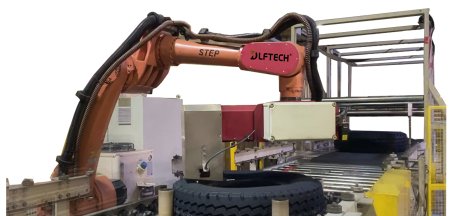

Tire laser engraving machine

Tire laser engraving machine


Application

Use laser to engrave the sidewall part of the finished tire. The machine is customizable for any font engraving, concave and convex characters, patterns etc.. It can read Word, CAD, AI and other file formats. The tire laser engraving technology maximizes the replacement frequency of mold labels, production cycle number labels and brand labels. It's especially suitable for meeting the personalized customization needs of tire group customers and individual consumers.


Feature

The automatic compensation technology for tire curvature and the calibration technology of position in DOF ensure that the font does not deform.


Highlights

1. The machine is modular design, easy and quick to install, and supports more than 750 specification.

2. Fast engraving speed: The fastest speed can reach 18 seconds/piece.

3. Precise engraving positioning: The engraving positioning uses the "O" of DOT to ensure accurate engraving position.

Inquire now
_20240330092308

Product Details

Use laser to engrave the sidewall part of the finished tire. Tire laser engraving machine is customizable for any font engraving, concave and convex characters, patterns etc..


Technical support

1. Flying shooting technology during motion in nanosecond.

2. AI judging technology by 3D real-time modeling. Automatic compensation technology by thermal imaging learning. Automatic recognition of tire 3D contour and OCR conversion technology.

3. The CO2 laser supports high temperature and abnormal self-test function. The service life is up to 100,000 hours.

4. Compatible with various MES communication protocols and self-contained small MES system seamlessly.

5. Negative pressure dust removal system removes odors and is safe and environmentally friendly.


Technical parameters

No.

Item

Parameter

1

Scope of application

All steel tires(TBR),semi-steel tires(PCR) and engineering tires

2

Tire outer diameter

280-1400(customizable)

3

Tire bead diameter

280-700(customizable)

4

Tire section width

145-480(customizable)

5

Engraving depth

0.2mm-1.5mm

6

Engraving depth accuracy

±0.02mm

7

Laser marking speed

≥300mm²/s

8

Min. line width

0.1mm-0.15mm

9

Min. character

0.8mm

10

Engraving width accuracy

±0.1mm

11

Engraving position radial error

±0.5mm

12

Engraving position rotational error

±1°
